HDMI Splitters
PS-H812
8K60 1×2 HDMI Auto Downscale Splitter
The Peapsonic PS-H812 is a high-performance 1-input, 2-output HDMI splitter for distributing one HDMI source simultaneously to two displays or downstream AV devices. It supports HDMI 2.1 bandwidth up to 48 Gbps, video resolutions up to 8K at 60 Hz, HDCP 2.3 and EDID management. Automatic downscaling improves mixed-display compatibility by adapting the outgoing signal when a connected display requires a lower supported resolution. This makes the PS-H812 suitable for installations using different display capabilities while maintaining stable source negotiation through selectable EDID modes.
Key Features
- Distributes one HDMI source to two HDMI displays simultaneously.
- HDMI 2.1 signalling with aggregate bandwidth up to 48 Gbps.
- Supports video resolutions up to 8K@60 Hz.
- HDCP 2.3 support for protected digital content.
- Automatic output downscaling for mixed-resolution display systems.

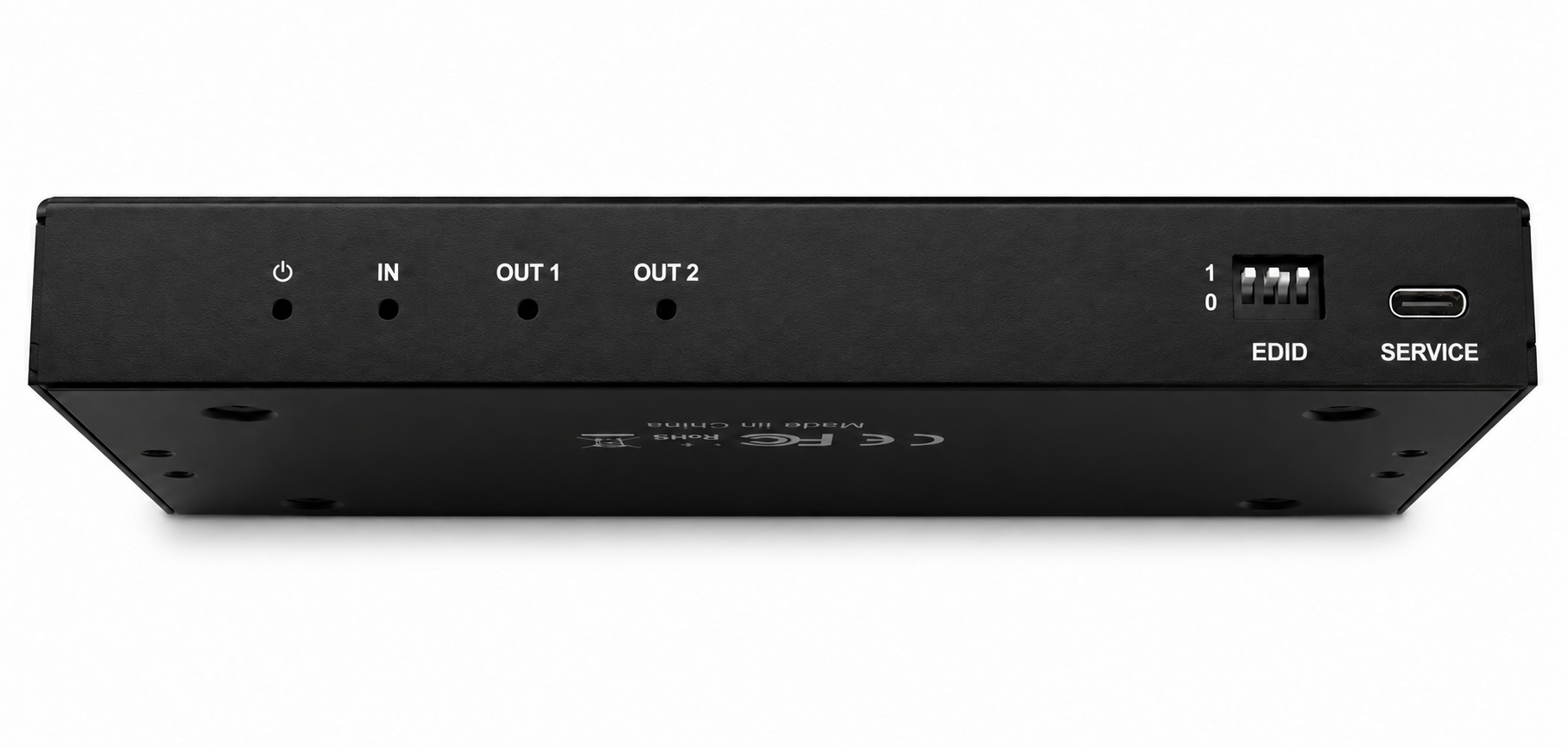

- Selectable EDID management through the front-panel DIP switches.
- Front-panel LEDs for power, HDMI input and both HDMI outputs.
- USB-C SERVICE port for service or firmware-related use.
- Compact black metal enclosure for professional AV installations.
- External regulated 5 V DC power input.
Technical Specifications
| Model | PS-H812 |
|---|---|
| Downscaling | Automatic |
| Product type | 1x2 HDMI splitter |
| EDID control | DIP-switch selectable |
| HDMI standard | HDMI 2.1 |
| Service port | USB Type-C SERVICE |
| Bandwidth | Up to 48 Gbps |
| Power input | 5 V DC |
| Resolution | Up to 8K@60 Hz |
| Housing | Black metal enclosure |
| HDCP | HDCP 2.3 |
| Indicators | Power, IN, OUT 1, OUT 2 |
| Video input | 1 x HDMI Type-A |
| Warranty | 3 years parts and labor |
| Video outputs | 2 x HDMI Type-A |
| Installation | Desktop / equipment shelf |
| Distribution | Simultaneous dual output |
Refer to the datasheet for complete operating conditions and model selection.
