PS-H818
8K60 1×8 HDMI Splitter with Audio De-embedding
The Peapsonic PS-H818 is a high-performance 1-input, 8-output HDMI splitter for distributing one HDMI source simultaneously to eight displays or downstream AV devices. It supports HDMI 2.1 bandwidth up to 48 Gbps, video resolutions up to 8K at 60 Hz, HDCP 2.3 and selectable EDID management. Integrated audio de-embedding provides optical S/PDIF and L/R analogue audio outputs, allowing HDMI audio to feed an amplifier, sound system or other audio equipment independently of the connected displays.
Key Features
- Distributes one HDMI source to eight HDMI displays simultaneously.
- HDMI 2.1 signalling with aggregate bandwidth up to 48 Gbps.
- Supports video resolutions up to 8K@60 Hz.
- HDCP 2.3 support for protected digital content.
- Optical S/PDIF and L/R analogue audio de-embedding.
- Selectable EDID management through the front-panel DIP switches.

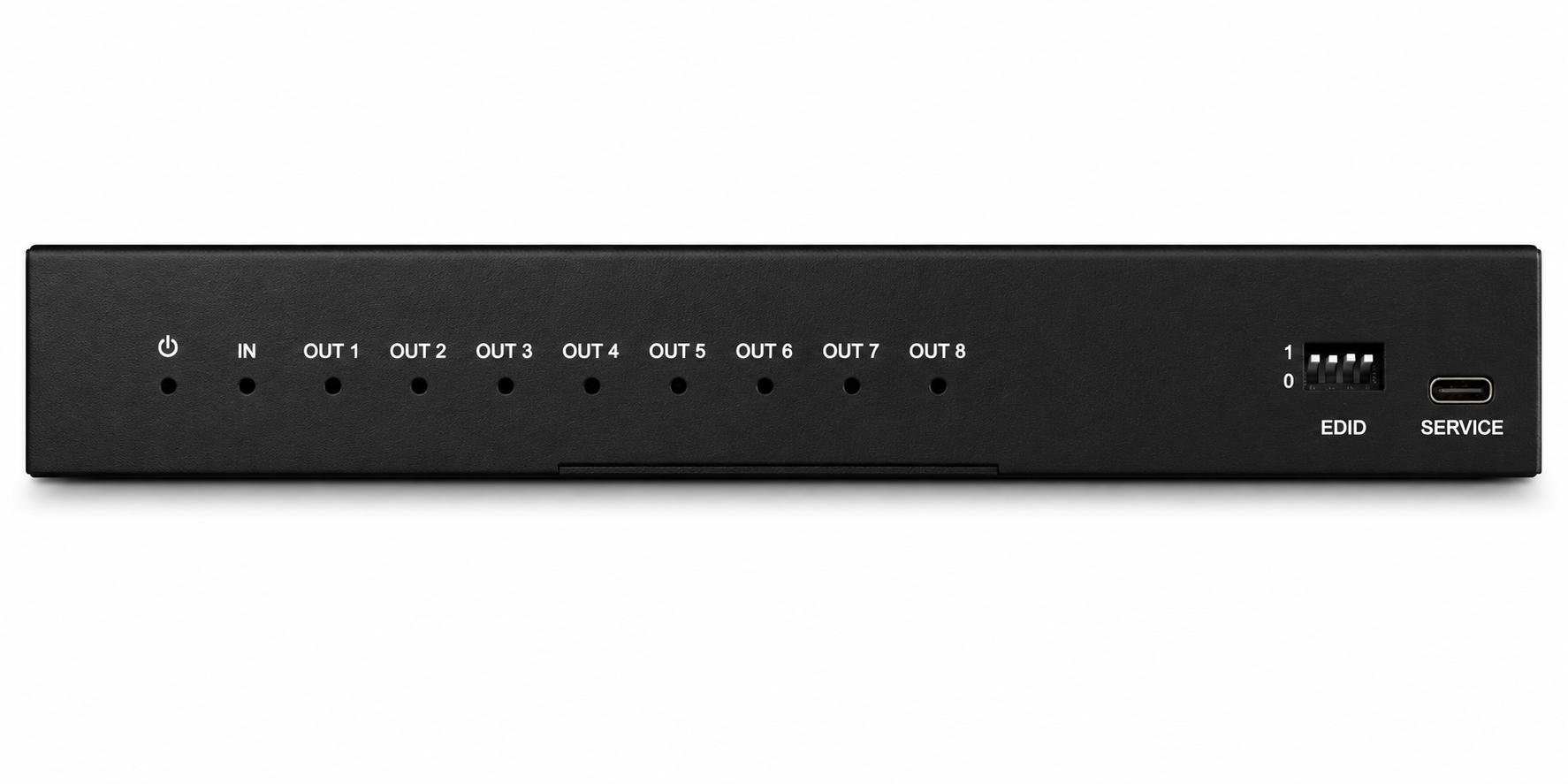

- Front-panel LEDs for power, HDMI input and outputs 1-8.
- USB-C SERVICE port for service or firmware-related use.
- Ventilated black metal enclosure for professional AV installations.
- External regulated 12 V DC power input.
Technical Specifications
| Model | PS-H818 |
|---|---|
| Audio de-embed | Optical + L/R analogue |
| Product type | 1x8 HDMI splitter |
| EDID control | DIP-switch selectable |
| HDMI standard | HDMI 2.1 |
| Service port | USB Type-C SERVICE |
| Bandwidth | Up to 48 Gbps |
| Power input | 12 V DC |
| Resolution | Up to 8K@60 Hz |
| Housing | Ventilated metal enclosure |
| HDCP | HDCP 2.3 |
| Indicators | Power, IN, OUT 1-8 |

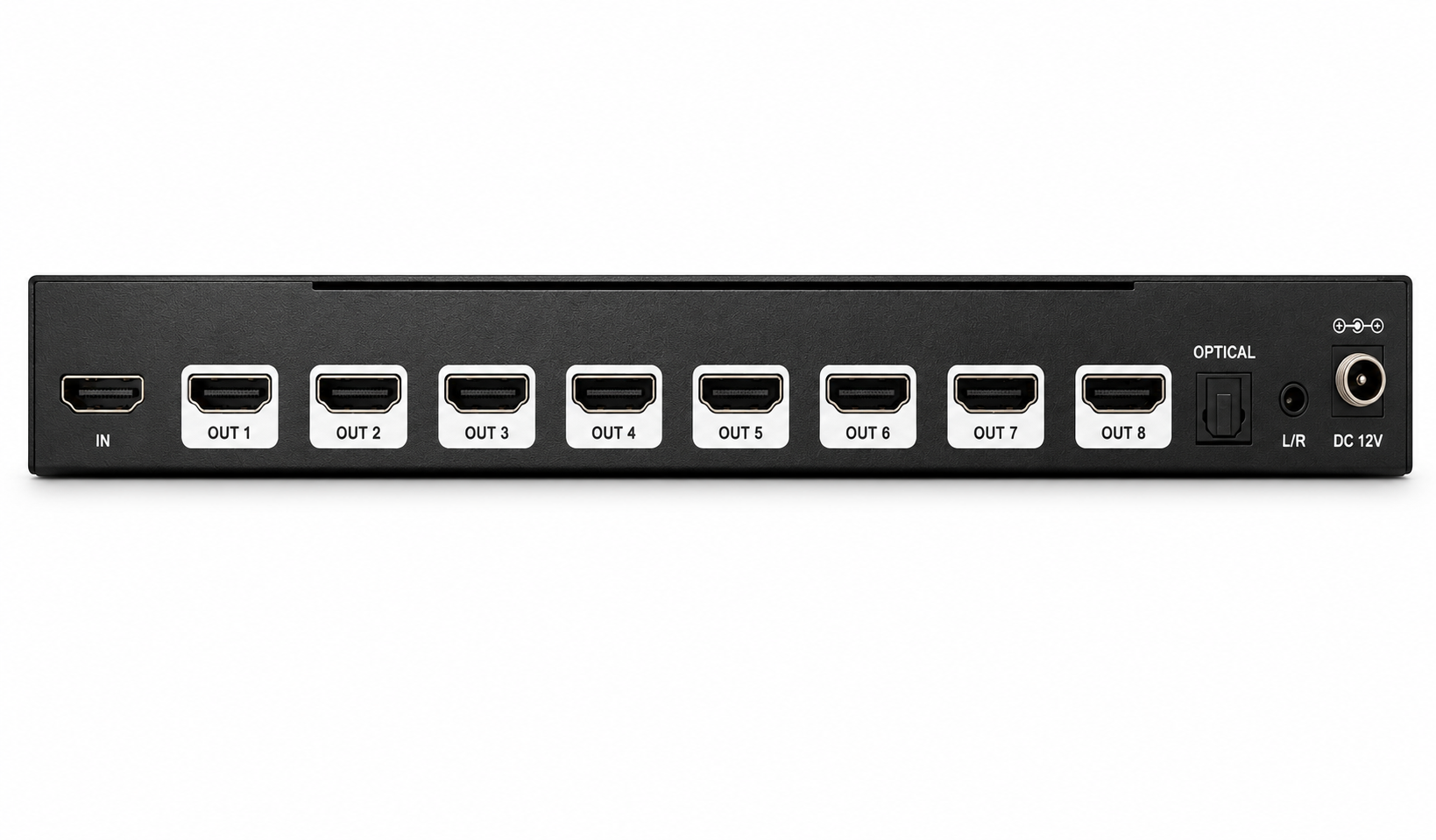

| Video input | 1 x HDMI Type-A |
| Warranty | 3 years parts and labor |
| Video outputs | 8 x HDMI Type-A |
| Installation | Desktop / equipment shelf |
| Distribution | Simultaneous eight output |
Refer to the datasheet for complete operating conditions and model selection.
