PS-H841

HDMI Switchers

PS-H841

8K60 4×1 HDMI Auto Switcher

The Peapsonic PS-H841 is a high-performance 4-input, 1-output HDMI switcher for modern 8K AV systems. It allows four HDMI source devices to share one display, projector or downstream AV system while supporting HDMI 2.1 bandwidth up to 48 Gbps, video resolutions up to 8K at 60 Hz, HDCP 2.3 and selectable EDID management. Automatic source switching simplifies meeting rooms, classrooms and home AV systems by selecting an active source when connected or powered. A front-panel SWITCH button also provides direct manual selection. Input, output, AUTO and power indicators make system status easy to identify.

Request a quoteDownload datasheet ↓

Key Features

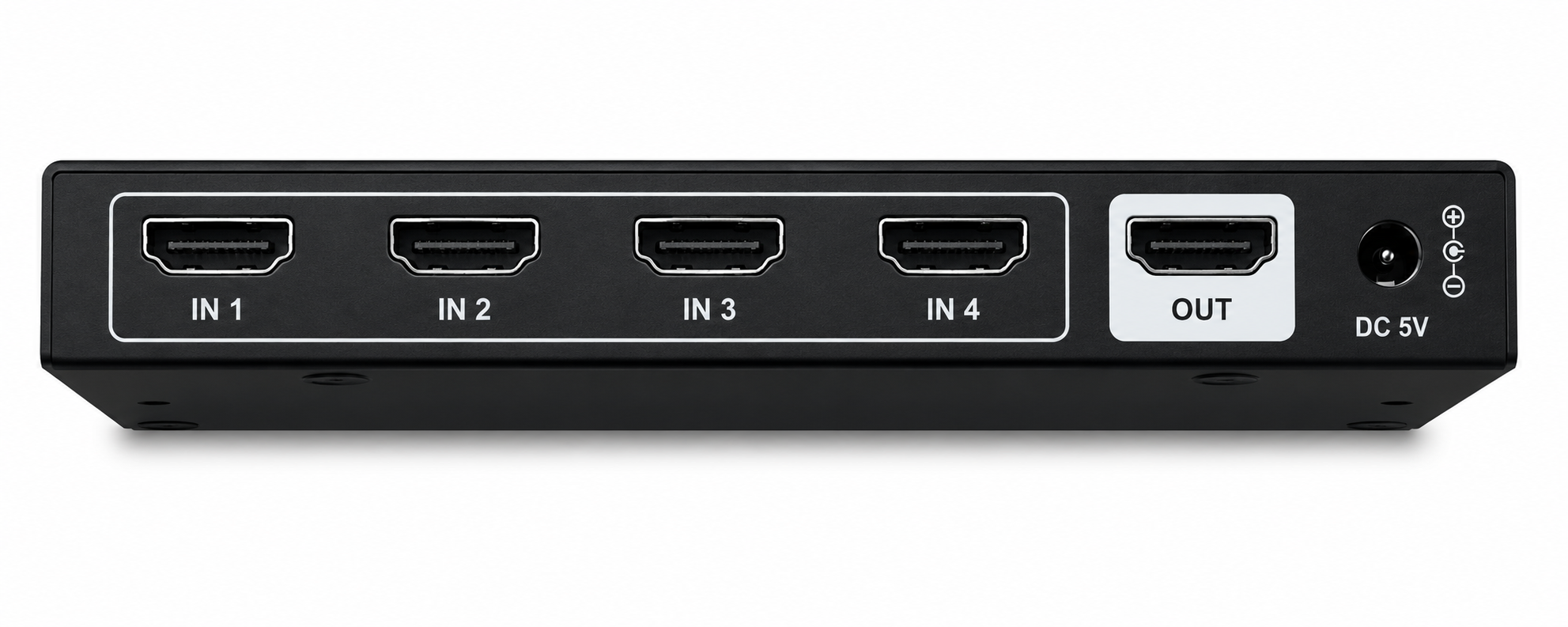

  • Four HDMI inputs switch to one HDMI output.
  • HDMI 2.1 signalling with aggregate bandwidth up to 48 Gbps.
  • Supports video resolutions up to 8K@60 Hz.
  • HDCP 2.3 support for protected digital content.
  • Automatic source detection and switching for simplified operation.

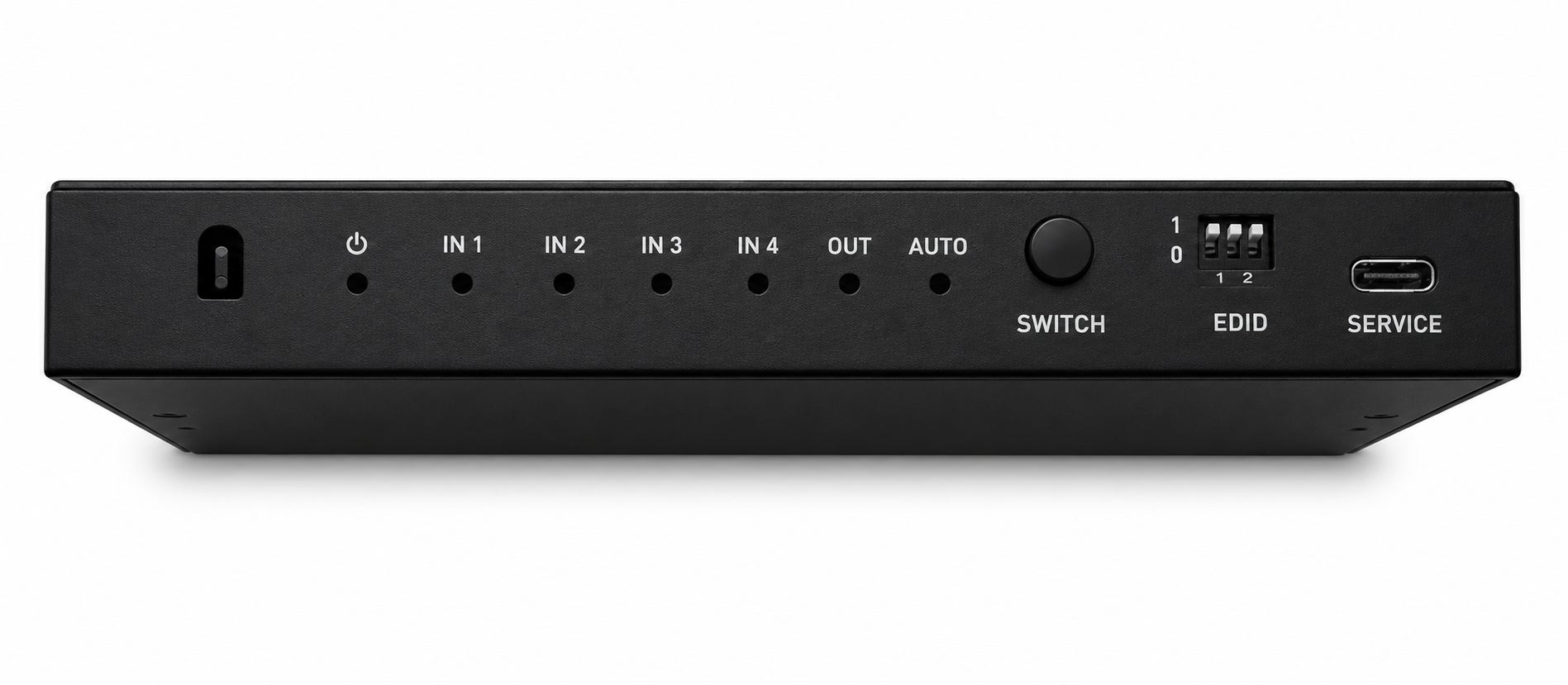

  • Manual input selection through the front-panel SWITCH button.
  • EDID selection using the front-panel DIP switch bank.
  • LED indicators for power, inputs 1-4, output and AUTO mode.
  • USB-C SERVICE port for service or firmware-related use.
  • Compact metal enclosure with external 5 V DC power input.
