4K HDBaseT Extender with IR, EDID & PoC — 70 m

The Peapsonic PS-HEP-70 is a compact HDMI over HDBaseT extender kit designed to carry 4K video, embedded audio, control and power over one category cable. The transmitter provides an HDMI input plus a convenient HDMI loop output, while the receiver delivers HDMI to the remote display. Integrated EDID selection helps match the source and display, bidirectional IR enables remote device control, and PoC simplifies installation by powering the remote unit through the CAT link. It is ideal for meeting rooms, classrooms, digital signage and control-room displays.

Request a quoteDownload datasheet ↓

Key Features

  • Extends HDMI video and audio over a single CAT5e/CAT6 cable.
  • Maximum transmission distance up to 70 m, depending on signal
  • resolution and cable quality.
  • Supports 4K UHD video; transmitter panel provides 1080p / 4K30 EDID
  • selection.
  • HDMI loop output at the transmitter for a local confidence monitor.
  • PoC sends power across the link, reducing power requirements at the
  • receiver.
  • Bidirectional IR pass-through controls source or display equipment from
  • either end.
  • Status LEDs at the RJ45 port assist power and link diagnosis.
  • Durable metal enclosures with integrated mounting flanges.
  • Plug-and-play point-to-point installation; no network switch or software
  • required.
  • Suitable for professionally installed AV and display-extension systems.
  • CONNECTION VIEWS

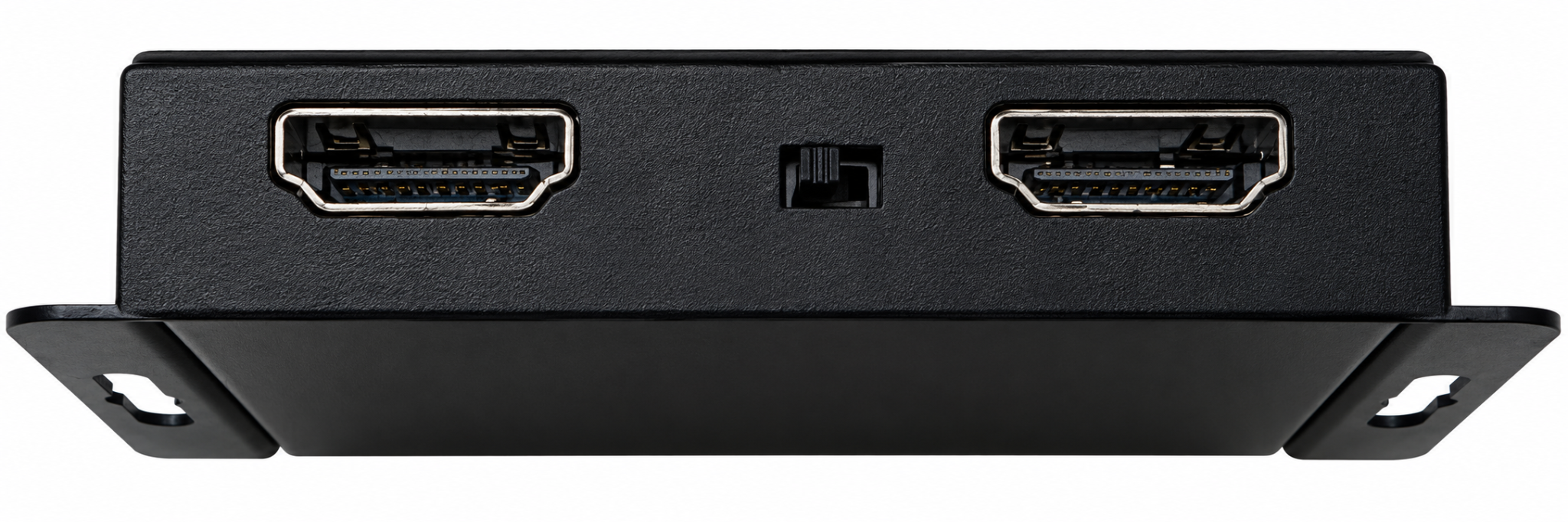

  • TX: HDMI loop out / EDID / HDMI input

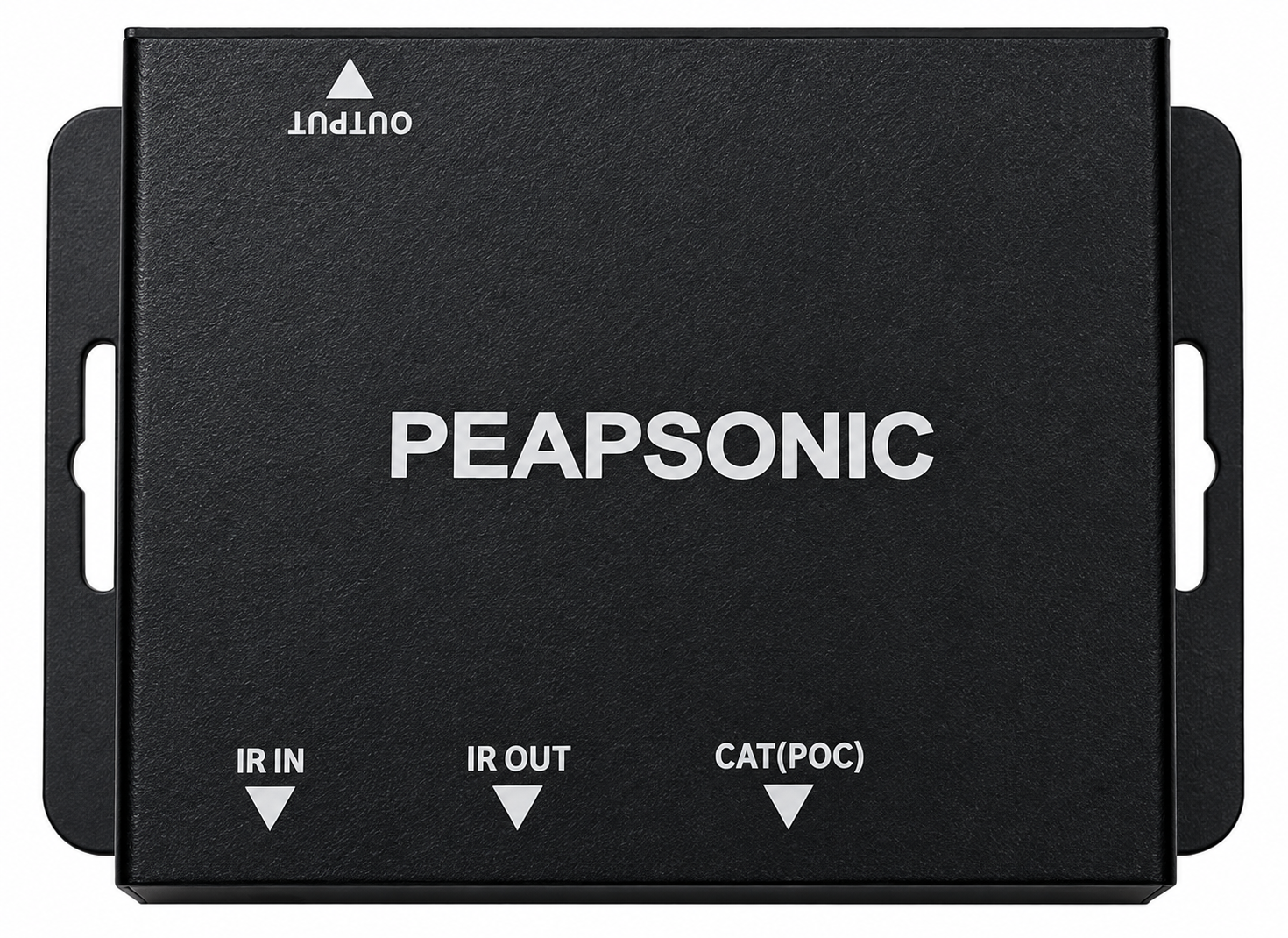

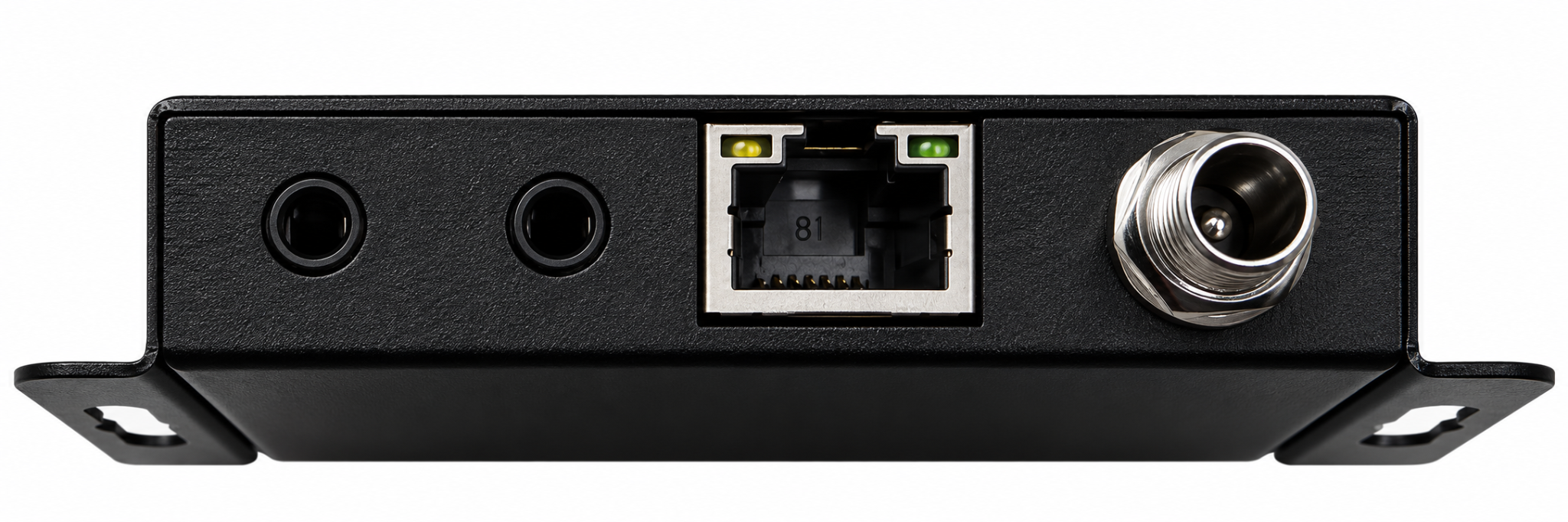

  • TX: IR / CAT (PoC) / DC 12 V

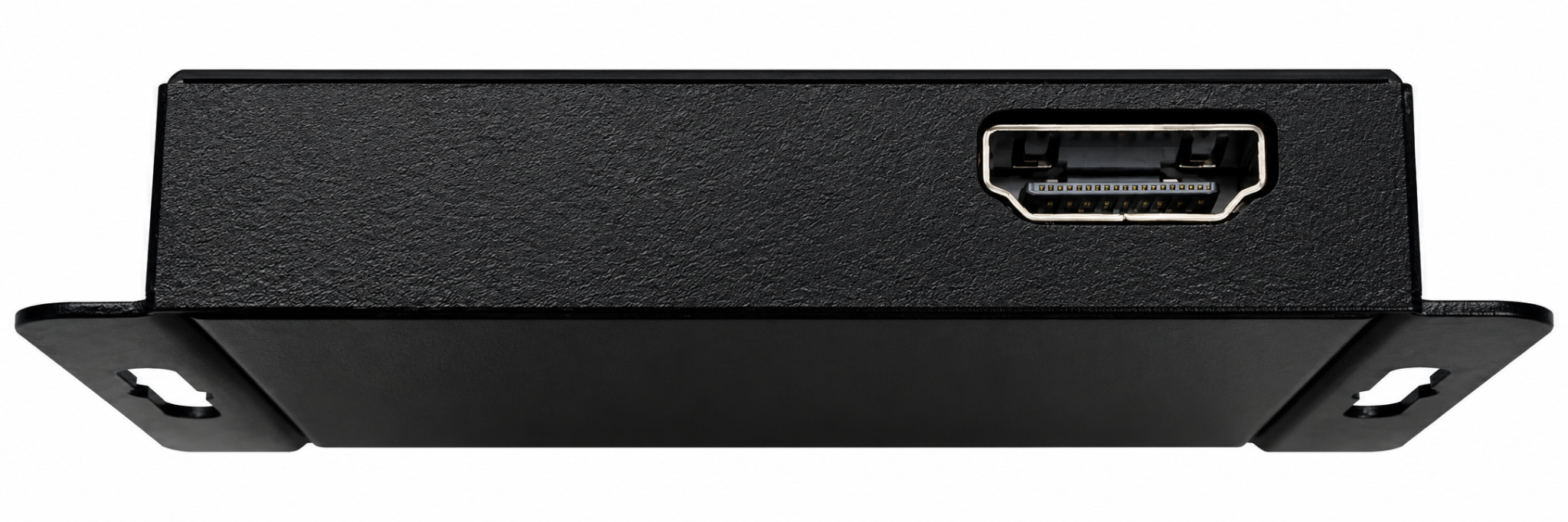

  • RX: HDMI output
  • PEAPSONIC | PROFESSIONAL AV & CONNECTIVITY SOLUTIONS
  • PS-HEP-70 | PAGE 1 OF 2
  • PRODUCT DATASHEET | PAGE 2 OF 2
  • PS-HEP-70 | 4K HDMI HDBaseT EXTENDER
  • Connection guide, application topology, distance guidance and technical specifications
  • APPLICATION DIAGRAM - 4K HDMI EXTENSION WITH IR AND PoC
  • HDMI SOURCE
  • PC / player
  • TX UNIT
  • Input + loop out
  • CAT5e / CAT6
  • HDBaseT + PoC
  • RX UNIT
  • HDMI out
  • 4K TV
  • Display
  • IR emitters/receivers can be connected at both ends for bidirectional equipment control.
  • POINT-TO-POINT LINK - DO NOT CONNECT THROUGH AN ETHERNET NETWORK SWITCH
  • CONNECTOR AND CONTROL GUIDE
  • TX HDMI INPUT
  • Connect the primary HDMI source device.
  • TX HDMI OUTPUT
  • Local HDMI loop output for a nearby monitor or display.
  • TX EDID SWITCH
  • Selects 1080p or 4K30 EDID presentation to the source.
  • TX IR IN / IR OUT
  • Connect compatible IR receiver and emitter accessories.
  • TX CAT (PoC)
  • RJ45 HDBaseT link to the receiver; carries AV, IR and power.
  • TX DC 12 V
  • Connect the supplied 12 V power adaptor to the transmitter.
  • RX CAT (PoC)
  • Receives HDBaseT signal and operating power from the transmitter.
  • RX HDMI OUTPUT
  • Connect to the remote television, monitor or projector.
  • RX IR IN / IR OUT
  • Provides bidirectional infrared control at the display end.
  • TECHNICAL SPECIFICATIONS
  • Model
  • PS-HEP-70
  • Power method
  • 12 V DC with PoC
  • Product type
  • HDMI HDBaseT extender
  • Topology
  • Point-to-point TX to RX
  • Video support
  • Up to 4K UHD / 4K30
  • Transmission
  • Uncompressed HDBaseT link
  • EDID modes
  • 1080p / 4K30
  • Audio
  • HDMI embedded audio pass-through
  • Max. reach
  • Up to 70 m
  • Indicators
  • RJ45 power / link status LEDs
  • 4K guidance
  • Up to 40 m at 4K30*
  • Housing
  • Black metal enclosure
  • Cable
  • CAT5e / CAT6; CAT6 recommended
  • Mounting
  • Integrated mounting flanges
  • HDMI ports
  • TX input + loop out; RX output
  • Operation
  • Plug and play
  • Control
  • Bidirectional IR pass-through
  • Warranty
  • 3 years parts and labour
  • PACKAGE CONTENTS &
