PS-U32-100

USB & Capture

PS-U32-100

USB 3.2 HDBaseT Extender — 100 m

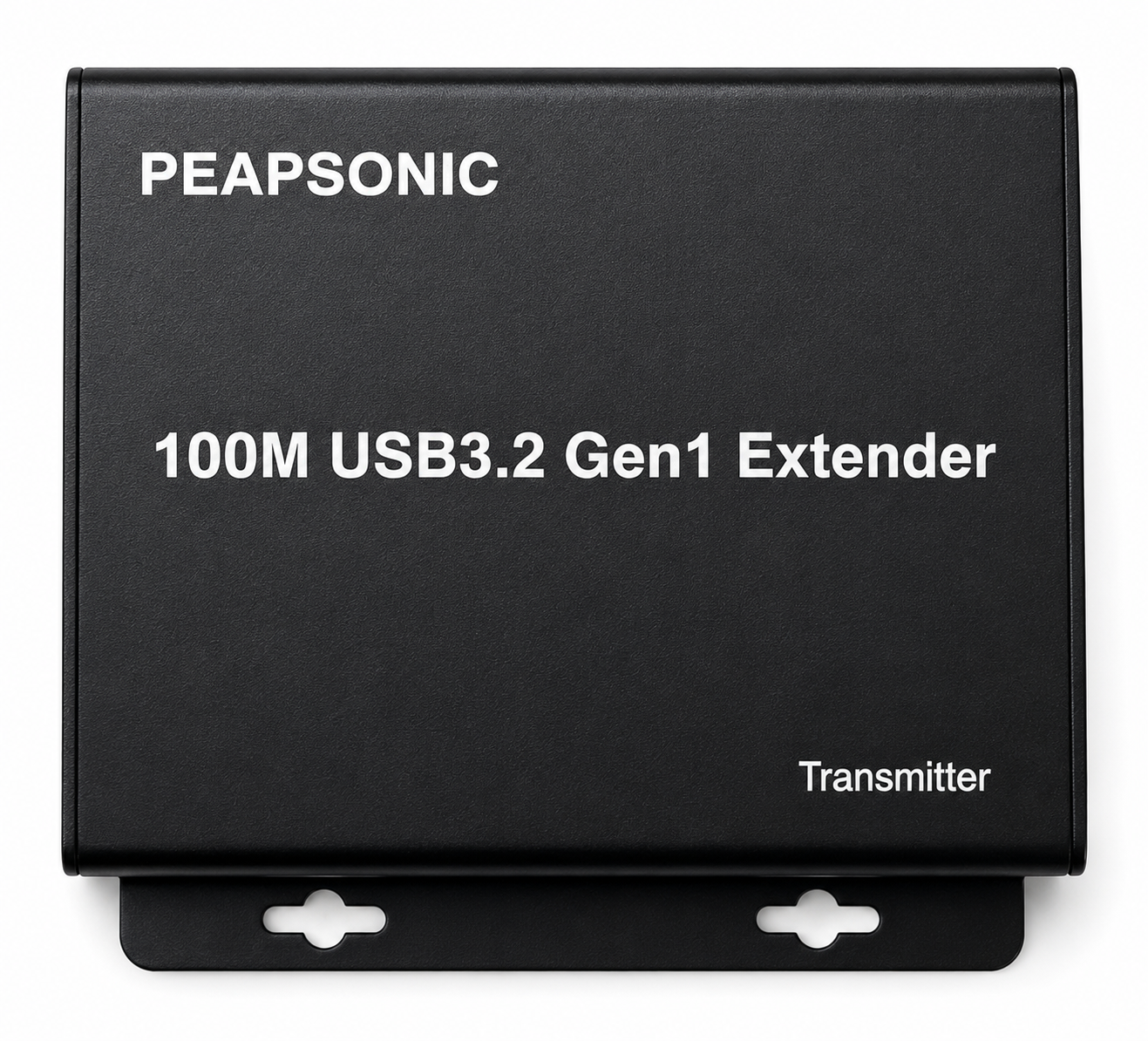

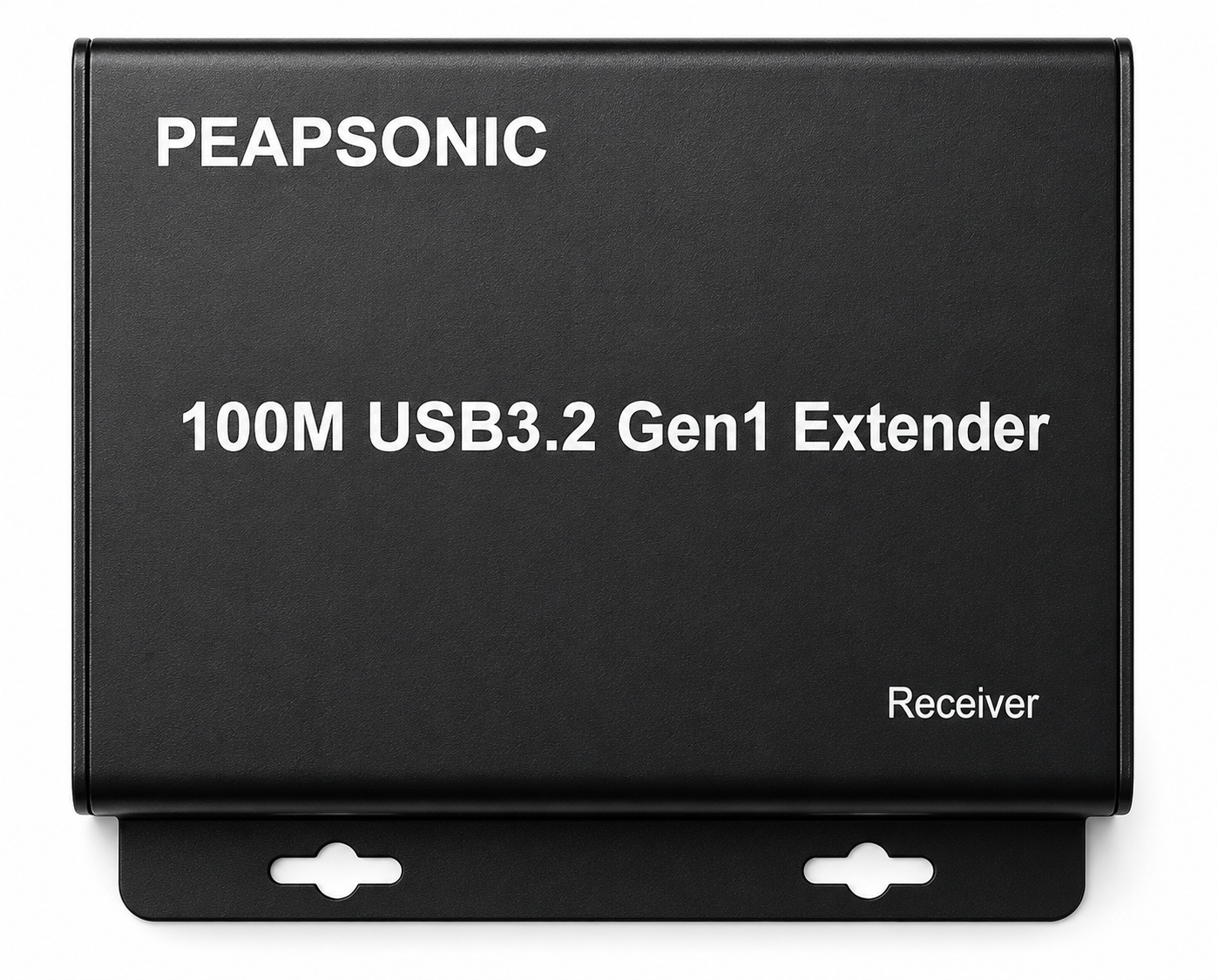

The Peapsonic PS-U32-100 is a professional USB 3.2 Gen 1 extension system designed to locate USB peripherals up to 100 metres from the host computer. A USB-C host connects to the transmitter; USB traffic is carried point-to-point over one CAT5e/6 cable to the receiver. At the remote end, the receiver provides four device connections: two USB 3.0 Type-A ports and two USB Type-C ports. The metal TX/RX enclosures, 12 V DC power input and mounting flanges suit conferencing rooms, classrooms, control rooms, equipment racks and professional AV installations.

Request a quoteDownload datasheet ↓

Key Features

  • USB 3.2 Gen 1 extension with data throughput up to 5 Gbps, subject
  • to the complete host, peripheral and cabling chain.
  • Up to 100 m point-to-point transmission over a dedicated CAT5e or
  • CAT6 cable.
  • Transmitter host interface: 1 x USB Type-C HOST port.

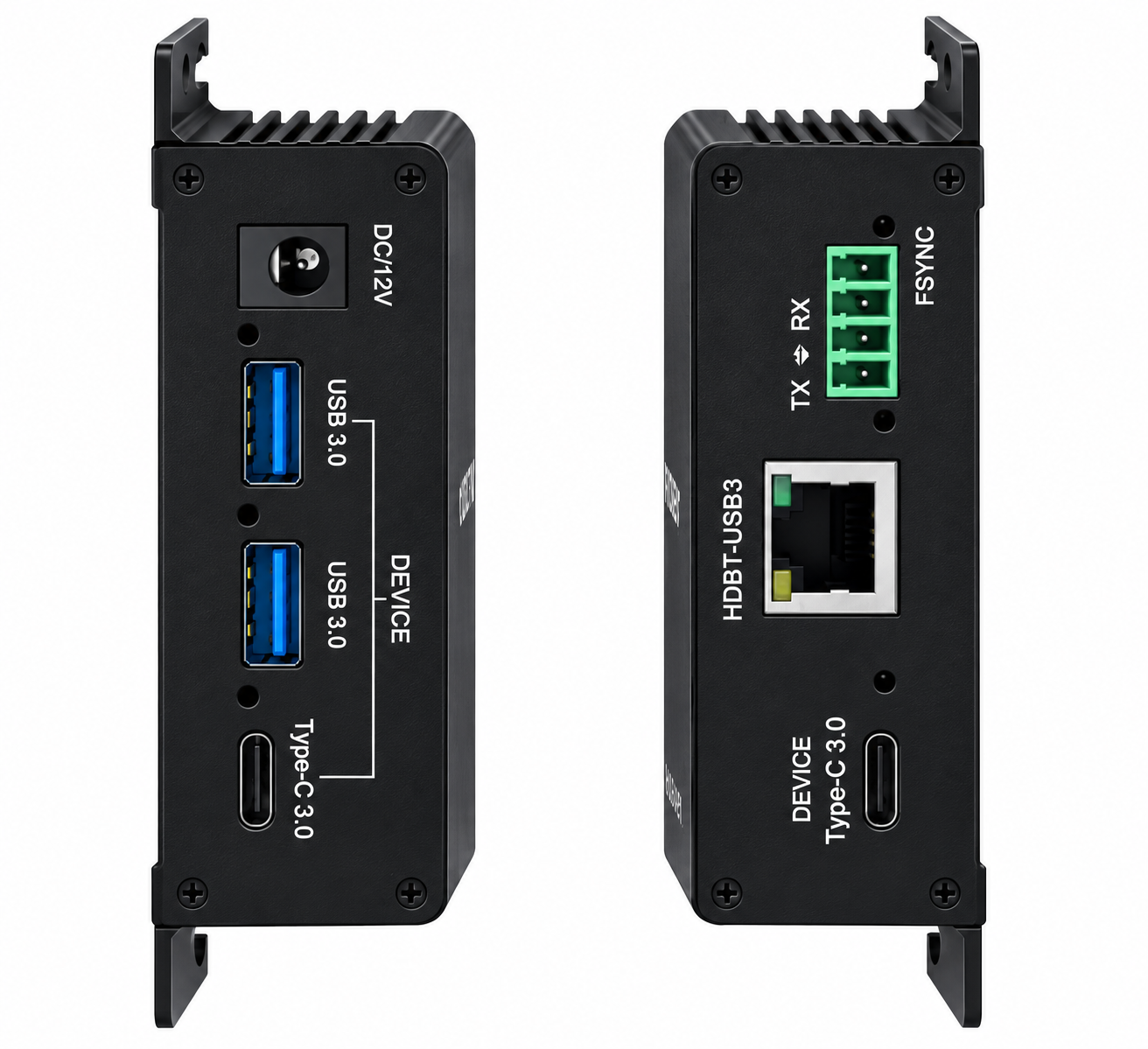

  • Receiver device interfaces: 2 x USB 3.0 Type-A and 2 x USB Type-C.
  • 12 V DC powered system with power/status indication.
  • HDBT-USB3 RJ45 transport link between transmitter and receiver.
  • Metal enclosure with integrated mounting flanges for fixed installation.
  • Transparent USB transport for cameras, touch displays, storage, audio
  • devices, scanners and other USB peripherals.
